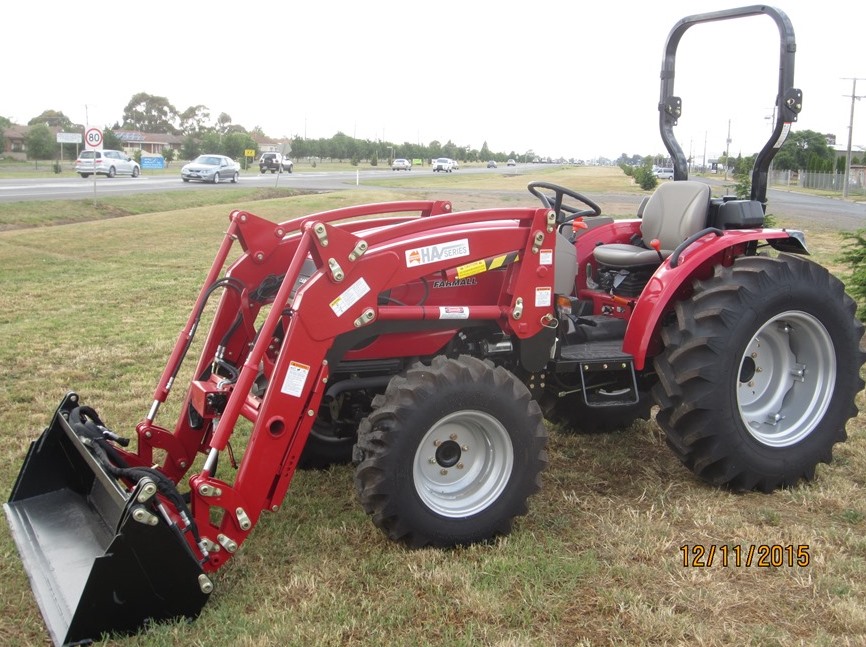

HA Series Loaders
All loader kits include loader, 3rd service, subframe, hydraulic kit to suit and 4in1 bucket. Loaders are self levelling. All Buckets are 4 in 1 Euro Hitch.
|
Tractor
|
Loader | Reference |
| FARMALL 35B | HA 1600 | QU-HCA-3035-1600 |
| FARMALL 40 / 50B | HA 1850 | QU-HCA-4050-1850 |
| FARMALL 60B | HA 2050 | QU-HCA-60B-2050 |
All tractors fitted with a Howard HA Series loader should be equiped with a 3 point linkage counter weight as recommended in the rated operating load database.
GENERAL LOADER SPECIFICATIONS
| Loader |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Bucket Width (mm) |
Shipping Weight (kg) |
Rated Operting Load (kg) |
Counterweight Required (kg) |
| HA 1600 | 1930 | 1580 | 415 | 130 | 1400 | 420 | 410 | 400 |
|
HA 1850 |
2435 | 1890 | 430 | 100 | 1570 | 540 | 380 | 300 |
| HA 2050 | 2640 | 2145 | 470 | 125 | 1700 | 735 | 625 | 400 |
All specifications are general and based on 4 in 1 bucket fitted. All dimensions are in (mm) milimetres. All weight is in (kg) kilograms. All buckets are 4in1 Euro Hitch except HA 1400 (pin on).
All Rated Operating Loads stated are based on appropritate Counter Weight being fitted. Specifications may change without notice.
